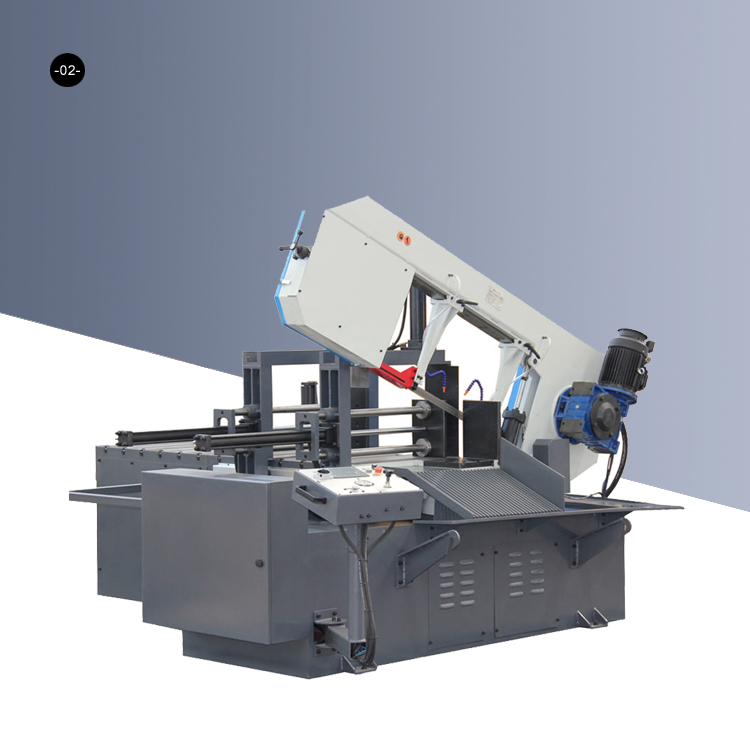

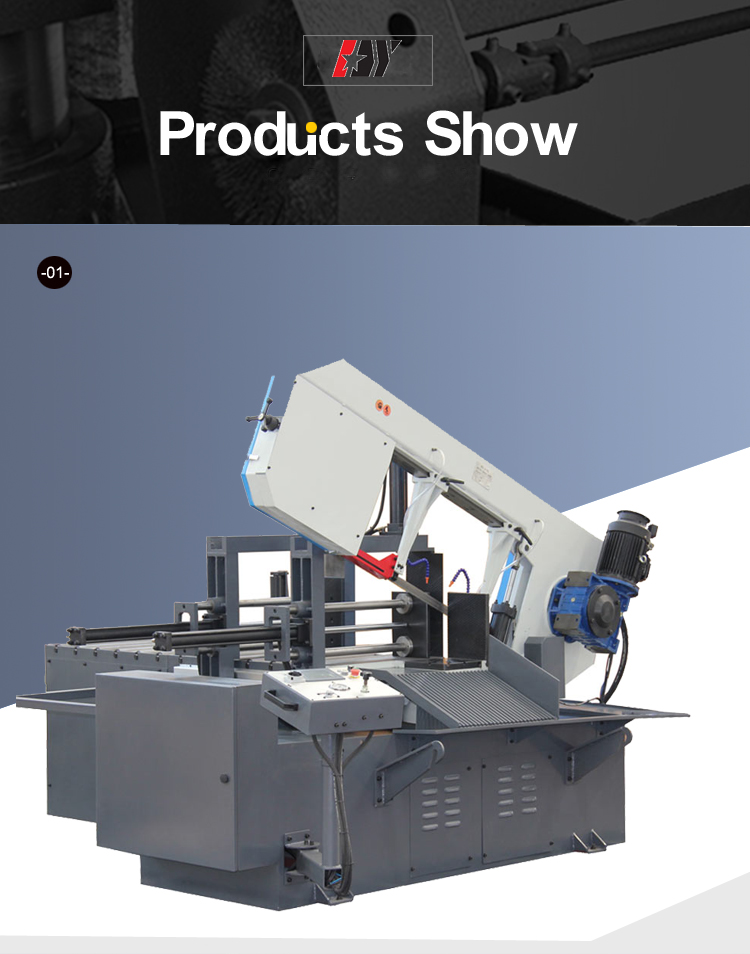

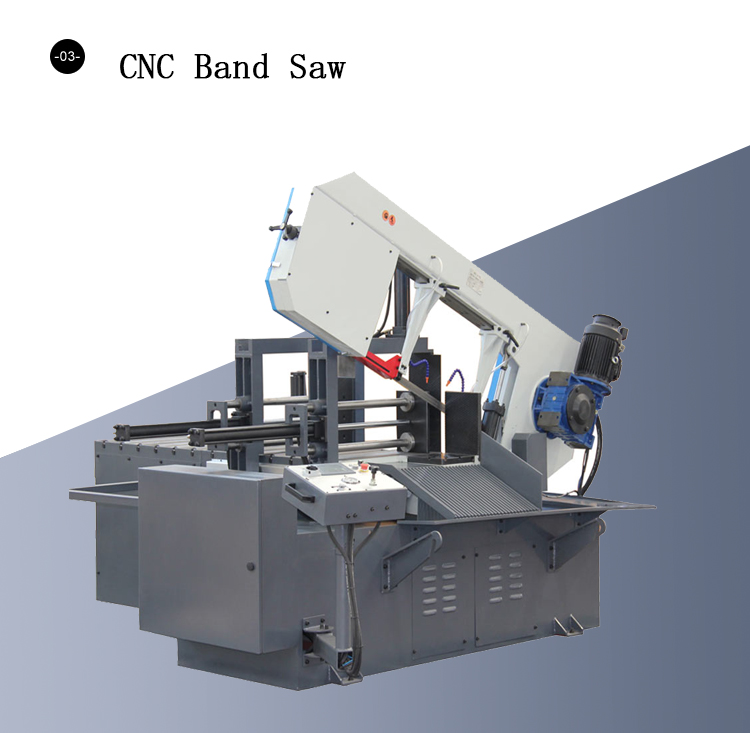

CNC Band Saw with Hydraulic Control System

Feature:

1.CNC automatic feeding and cutting

2. With Hydraulic clamping vice

3.With automatic rotary saw bow

4.With deceleration variable frequency motor

5. The maximum length of an automatic feed us to 650mm

6. The maximum processing capability is 18 inch

7. The precise CNC band saw BS-650G has a hydraulic control system that can automatically feed and clap materials,rotate, cut.

8. Our CNC band saw has a variable speed gear motor that determines the rotation rate of saw blade.

9.Hydraulic pressure controls the rotation of saw bow. The maximum feeding length is 650mm.

10. The cooling system of our CNC band saw prolong the service life of saw blade and improve the precision

 of the workpiece.

Specification

Model		BS-650G
Capacity	Circular  ◎ 90°  (mm)	650mm
	Rectangular ▀  90°  (mm)	650*350mm
	Circular◎  45°   (mm)	460mm
	Rectangular ▀  45° (mm)	460*350mm
	Circular◎  60°   (mm)	310mm
	Rectangular ▀ 60° (mm)	310*350mm
Blade speed		23-95rpm
Blade size		34x1.1x5220mm
Motor power		3.0kw
Drive		Gear
Packing Size		293x220x200cm
N.W/G.W		2020/ 2320kg
